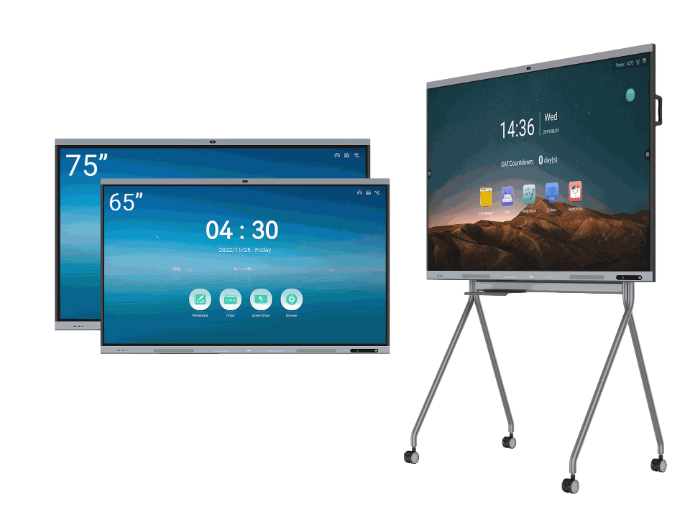

65D6APro Interactive Flat Panel

Brand

DCL

Model

65D6APro

Display

Size

65"

Backlight Type

D-LED

Panel Technology

IPS

Resolution(pixels)

3840×2160(pixels)(UHD)

Brightness

450cd/m²(typ.)

Aspect Ratio

16:9

Contrast Ratio

1200:1(typ.) 100,000:1 (Dynamic)

Response Time

8ms

Display Colors

1.07B(8bit+FRC)

Life Time

50,000 hrs

Electrical

CPU Architecture

Cortex A73+A53

CPU Working Frequency

Max 2.2GHz for big and 2.0GHz

CPU Core

Quad core A73 + Quad core A53

GPU

Mali G52-MP8

RAM

8GB LPDDR4X

ROM

128GB

OS

Android 13.0

Audio Output Power

2x20W/6Ω

Subwoofer

20W/4Ω

Sensor

Infrared, NFC, and light sensor

WIFI

Main Chipset (Wi-Fi 6)

AP6275P

Operating Frequency (Wi-Fi 6)

2.4GHz/5GHz

Main Chipset (Wi-Fi 5)

MT7663BU

Operating Frequency (Wi-Fi 5)

2.4GHz/5GHz

Wi-Fi Standard (Wi-Fi 5)

802.11a/b/g/n/ac

Bluetooth

Bluetooth

BT 5.1

NFC

Standard

ISO/IEC 14443 A / ISO/IEC 14443 B

Support card type

MIFARE FeliCa

Camera

Pixels

48MP

DIAGONAL & Horizontal (FOV)

114.9° & 102.1°

UVC

MJPEG: 3840*2160(30fps) ，1920*1080(30fps) 1280*720(30fps)

AI Camera (active open required)

Sound localization & Intelligent framing

Array Mic

Array quantity

8-mic

Pick up Area

12m (Angle: 180°)

AEC

Support

AGC

Support

Touch

Sensing Type

Infrared Touch Frame

Surface Protection

Zero-Bonding 9H tempered 3.2 mm Thickness Toughened Glass

Infrared Touch

45 Points(max.)

Interpolation Resolution

32768 x32768

Minimum Touch Object

Single touch ≥1.6mm & Multiple touch ≥2mm

Writing Mode

Finger + Pen
