Price:
15,200.00 ৳

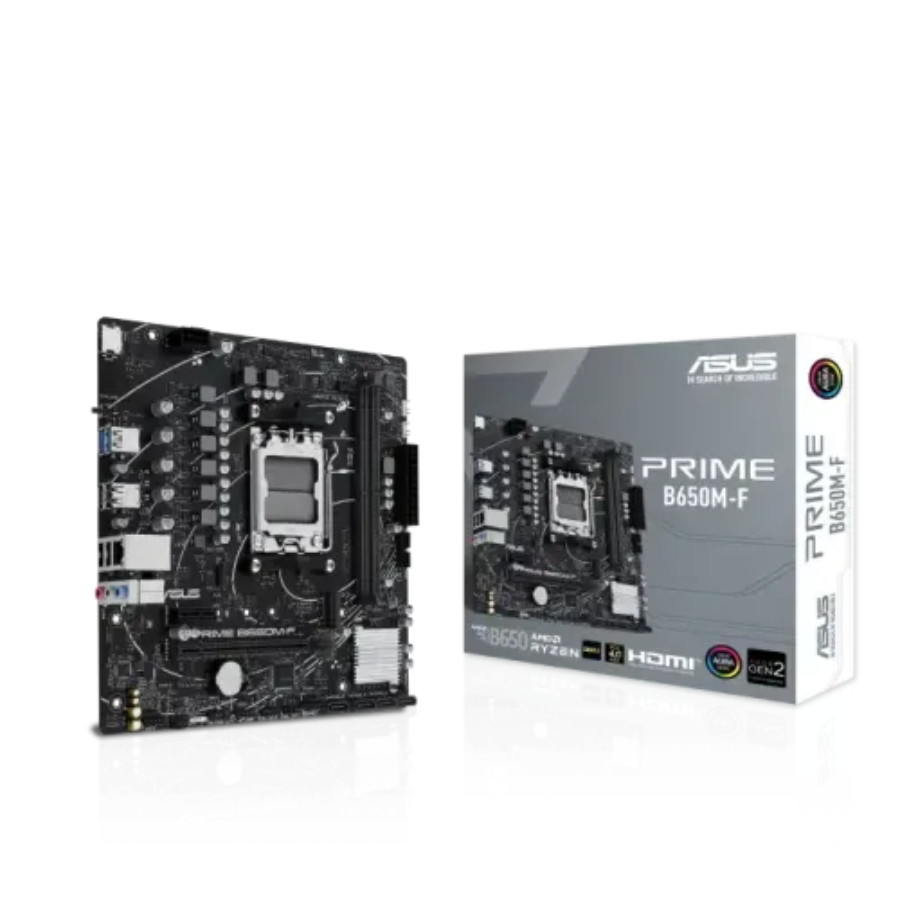

ASUS PRIME B650M-F, AMD B650 MICRO ATX MOTHERBOARD, AMD B650 CHIPSET, DDR5 7200+(OC) PCIe 4.0 SUPPORT
Key Features
Model: PRIME B650M-F
Supported CPU: Ryzen 9000/8000/ 7000 Series Processors for Socket AM5
Supported RAM: 2x DDR5, up to 96GB, 7200+(OC)
Graphics Output: 1x HDMI
Features: 1 x Realtek 1Gb Ethernet
Specification
| Basic Information | |
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset | AMD B650 Chipset |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | micro-ATX Form Factor 8.9 inch x 8.6 inch (22.6 cm x 21.8 cm) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
| Expansion Slots | |
| PCI | AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B650 Chipset 1 x PCIe 4.0 x1 slot |
| Memory | |
| Type | DDR5 |
| Slots | 2 x DIMM slots |
| Supported Memory | 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) |
| Maximum Memory | Max. 96GB |
| Graphics | |
| Graphics | Supports 4K@60Hz as specified in HDMI 2.1. |
| Connector & Ports | |
| HDMI | 1x HDMI |
| USB (s) | Rear USB (Total 6 ports) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 6 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| LAN Port (s) | 1 x Realtek 1Gb Ethernet |
| Supported Storage | Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports* AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset 4 x SATA 6Gb/s ports |
| RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. |
| Audio | 3 x Audio jacks |
| Internal I/O Ports | Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage Related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header Back Panel I/O Ports 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| Others | |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED Aura Sync - Addressable Gen 2 headers |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Warranty Information | |
| Manufacturing Warranty | 3 Years Warranty |
Description
Asus PRIME B650M-F AM5 mATX Motherboard
The ASUS PRIME B650M-F AM5 mATX motherboard is designed for users seeking high performance with cutting-edge technology. Built on the AMD B650 chipset, it supports the latest AMD Ryzen™ 7000 and 8000 Series Desktop Processors, offering powerful computing for gamers, creators, and professionals. This micro-ATX motherboard embraces the future with support for DDR5 memory, PCIe 4.0, and a 64Gbps M.2 slot, providing ultrafast data transfer and enhanced connectivity. The Realtek 1Gb Ethernet and USB 5Gbps Type-A ports further enhance network and peripheral performance. To ensure optimal performance under demanding conditions, the motherboard features comprehensive cooling solutions, including a PCH heatsink, hybrid fan headers, and Fan Xpert 2+ for dynamic thermal management. For users interested in aesthetics, the onboard Aura Sync RGB Lighting allows synchronization of RGB LED strips with other Aura Sync-capable devices, enabling a fully customizable lighting experience. The motherboard is equipped with Two-Way AI Noise cancellation, which reduces background noise during communication, making it ideal for gaming or video conferences. The inclusion of BIOS FlashBack allows for easy and safe firmware updates, ensuring the system is always up-to-date and running smoothly. The ASUS PRIME B650M-F is an excellent choice for building a modern, high-performance PC ready for advanced AI applications and intensive tasks.
